Connect DJI Drone to Botlink




Set up Device

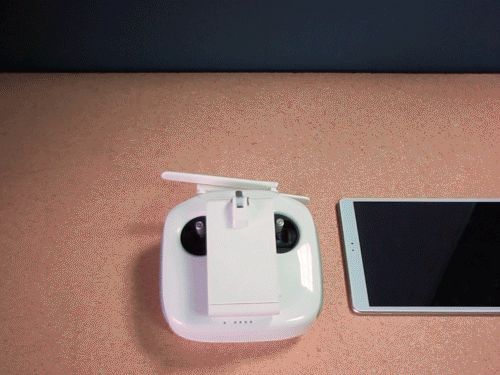

Mount Tablet onto DJI Remote Controller and open Botlink Capture.


Power On System

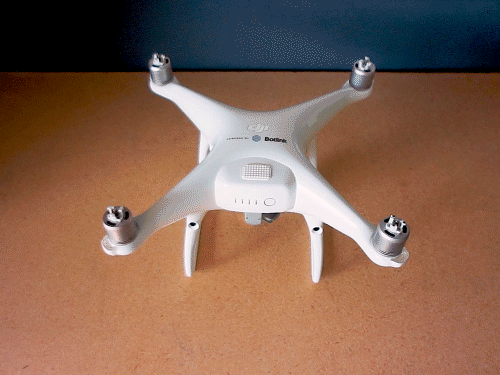

Power on drone first by using the power button on the battery. Click once to check the battery level, click again and hold to turn the drone on.

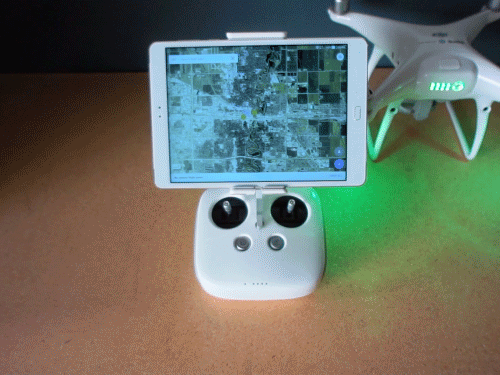

Power on DJI Remote Controller using the same double click and hold method.


Once the Remote Controller (RC) status LED indicates green (Connected to Drone), plug the micro USB cable into the controller and device.

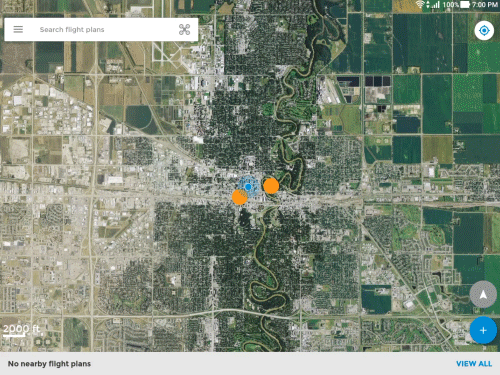

Once the app has connected to the controller, it will detect a connected drone and prompt you to set up a new drone profile. Give the new profile a name and click "CONTINUE" to save.

NOTE: If drone is not detected; unplug USB, power cycle drone/RC, and reopen app until dialog box appears.
